·高互换精度   High exchangeability

·优良的可焊性及耐热冲击性    Superior solderability and resistance to soldering heat shock

·宽的工作温度范围-40～+300℃    The wide operation temperature ranges to +250℃ from –50℃

·耐湿性能优良   Moisture resistant

·低损耗小尺寸    Low cost and small size

·批量化生产保证了产品的高品质和高稳定性    Excellent quality and high stability by mass production

·NTC温度传感器，手机电池，充电器，电饭煲，洗碗机，电烤箱，电子体温计，电子万年历等。 ·Temperature sensor ,mobile cell, charger , electric cooker, dish washer , electric oven, electronic clinical thermometer, electronic perpetual calendar, and so on.

型号命名 PART NUMBERING

① 某公司标示记号

⑤ B值常数记号  B value Code

⑦ 计算B值温度代码 B value Temperature Code

⑧ 器件外型标示记号Shape code

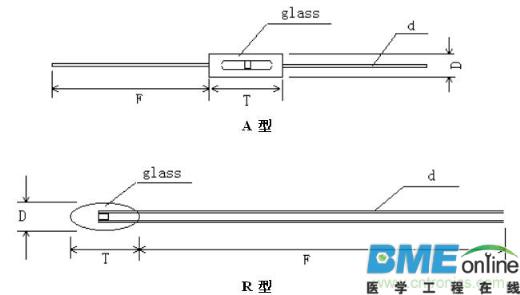

外形尺寸 APPEARACE AND DIMENSIONS

性能参数  PERFORMANCE PARAMETER

·阻值范围（R25）：0.5～200KΩ   Rated resistance（R25）：0.5～200KΩ

·阻值精度：±1% ±2% ±3% ±5%   Resistance tolerance：±1% ±2% ±3% ±5%

·B值精度：±0.5% ±1% ±2% ±3%    B value tolerance：±0.5% ±1% ±2% ±3%

·热时间常数（静止空气中）：≤ 20sec    Thermal time constant (in still air)： ≤ 20sec

·使用温度范围：－50～+250℃   Operating temperature：－50～+250℃

综上所述，本文已为大家讲解高精度玻封NTC热敏电阻器简介，相信大家对高精度玻封NTC热敏电阻器简介的认识越来越深入，
